M   J     TOWER     -     BEDFORD     TOWER
MANHATTAN     BEACH     JUNCTION
BEDFORD     SECONDARY     TRACK
BEDFORD   AND   BAY   BLOCK   STATIONS


THE ORIGINAL MANHATTAN   BEACH   JUNCTION   TOWER WAS BUILT CIRCA
1885 AND WAS LAST LISTED IN THE EMPLOYE TIME TABLE AND C. R. 4 OF 1903.

go   to   ---->   THE   FIRST   MANHATTAN   BEACH   JUNCTION   TOWER

A DECEMBER 1, 1906 GENERAL NOTICE LISTS TELEGRAPH OFFICES
WHICH ARE TRAIN ORDER OFFICES AND TRAIN REPORTING OFFICES.
MANHATTAN BEACH JUNCTION APPEARS ON BOTH LISTS.

GENERAL ORDER NUMBER 31 DATED MAY 17, 1906 ESTABLISHED AN ABSOLUTE TELEGRAPHIC BLOCK BETWEEN MANHATTAN BEACH JUNCTION AND PARKVILLE ON THE BAY RIDGE DIVISION EFFECTIVE MAY 21 THROUGH 26 AND JUNE 7 THROUGH 20.   ON THOSE DATES RACES WERE RUN AT CONEY ISLAND JOCKEY CLUB AND LONG ISLAND TRAINS RAN THERE VIA THE PROSPECT PARK & CONEY ISLAND RAIL ROAD FROM PARKVILLE.

THESE BLUEPRINTS SHOW THE TRACK LAYOUT CIRCA 1915.
NOTE THE 1885 BRICK TOWER - STILL THERE BUT OUT OF SERVICE.















M   J     TOWER
MANHATTAN     BEACH     JUNCTION




THIS IS A GENERAL RAILWAY SIGNAL COMPANY (G. R. S.) TYPE   B   ELECTRO - MECHANICAL MACHINE



THE   MODEL   BOARD   CALLS   THE   TOWER   "MB"






1927 LOOKING TOWARD BAY RIDGE - CATENARY IS BEING STRUNG


THE BRIDGES ARE OCEAN AVENUE, THE STATION FOOTBRIDGE AND THE BRIGHTON LINE


1927   LOOKING   TOWARD   NO   -   CATENARY   IS   BEING   STRUNG




A   LONG   ISLAND   WORK   TRAIN   AND   A   NEW   HAVEN   FREIGHT


1927   LOOKING   TOWARD   NO   -   CATENARY   HAS   BEEN   STRUNG


IN   1938   THE   TOWER   HAD   A   KEYSTONE   "BEDFORD"   SIGN


1938   OCEAN   PARKWAY   BRIDGE   AND   DISTANT   SIGNAL   "2D"   -   LATER   COLOR   LIGHT   SIGNAL   "B128"



SINCERE     THANKS     TO     AL     BRECKEN     FOR     THIS     1917     G. R. S.     TRACK     PLAN





IN   1927   THE   INTERLOCKING   WAS   DRASTICALLY   CHANGED
UNION   SWITCH   &   SIGNAL   COMPANY   DREW   UP   THIS   PLAN

SINCERE     THANKS     TO     AL     BRECKEN     FOR     THIS     PLAN.





TO   ENTER   THE   MANHATTAN   BEACH   BRANCH   A   TRAIN   HAD   TO   MAKE
A   REVERSE   MOVE       (PASSENGER   SERVICE   HAD   ENDED   IN   1924)


A   CLOSE   UP   VIEW   OF   SIGNALS   AND   SWITCHES




1945   INTERLOCKING   PLAN


BEDFORD   TOWER   WAS   CLOSED   IN   1949   -   IN   1985   THE   FOUNDATION   WAS   STILL   THERE

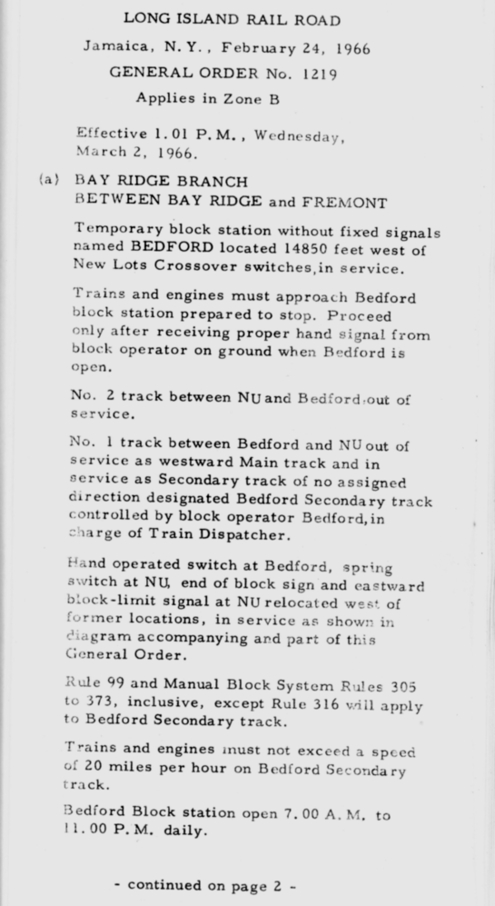

ON  MARCH  2,  1966  NUMBER  TWO  TRACK  WAS  REMOVED  FOR  THE  INSTALLATION
BY  BUCKEYE  OF  A  PIPELINE  TO  SUPPLY  JET  FUEL  TO  KENNEDY  AIRPORT.
A  TEMPORARY  BLOCK  STATION,  "BEDFORD"  -  WITHOUT  FIXED  SIGNALS  -  WAS  ESTABLISHED
AND  MANNED  FROM  7:00  A.M. UNTIL  11:00  P.M.       NUMBER  ONE  TRACK  BECAME  A
SECONDARY  TRACK  OF  NO  ASSIGNED  DIRECTION  WITH  MANUAL  BLOCK  RULES  IN  EFFECT.





ON   APRIL   4,   1966   BEDFORD   TEMPORARY   BLOCK   STATION   WAS   REMOVED   FROM   SERVICE.

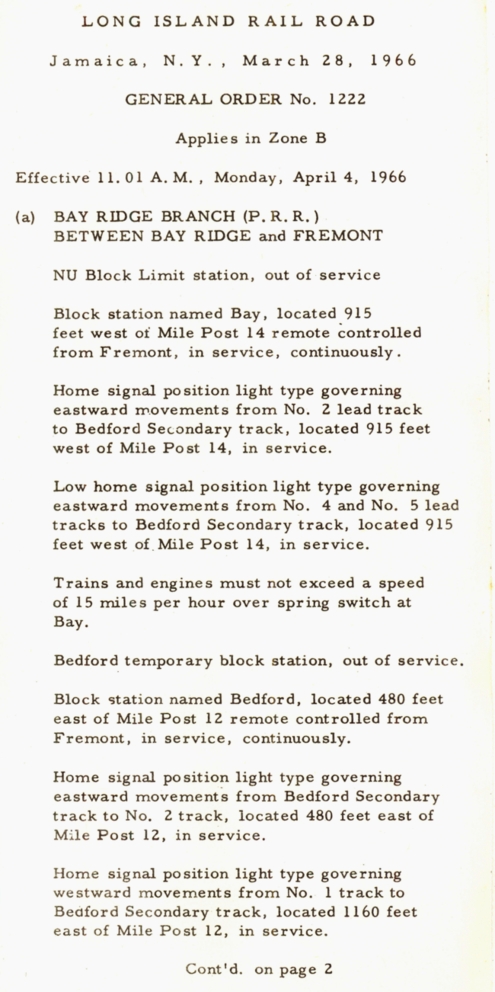

REMOTE   CONTROLLED   (FROM   FREMONT)   BLOCK   STATIONS   BEDFORD   AND
BAY   WERE   CREATED   WITH   POSITION   LIGHT   SIGNALS   AND   SPRING   SWITCHES.







MANY THANKS TO DICK MAKSE FOR THESE SIX 1968 PHOTOS AND FOR CORRECTING SOME MISINFORMATION





SIGNAL   "2L"   AND   BEDFORD   TOWER'S   FOUNDATION   IN   1968


"BEDFORD"   BLOCK   STATION
SIGNAL NUMBER FOUR, OCEAN AVENUE BRIDGE AND SPRING SWITCH NUMBER "119 SS"


OCEAN AVENUE BRIDGE - THE TRACK AT LEFT ENTERS A HIGH TENSION
DEPARTMENT OFFICE AREA AND STOREROOM FOR THEIR LINE CAR/S

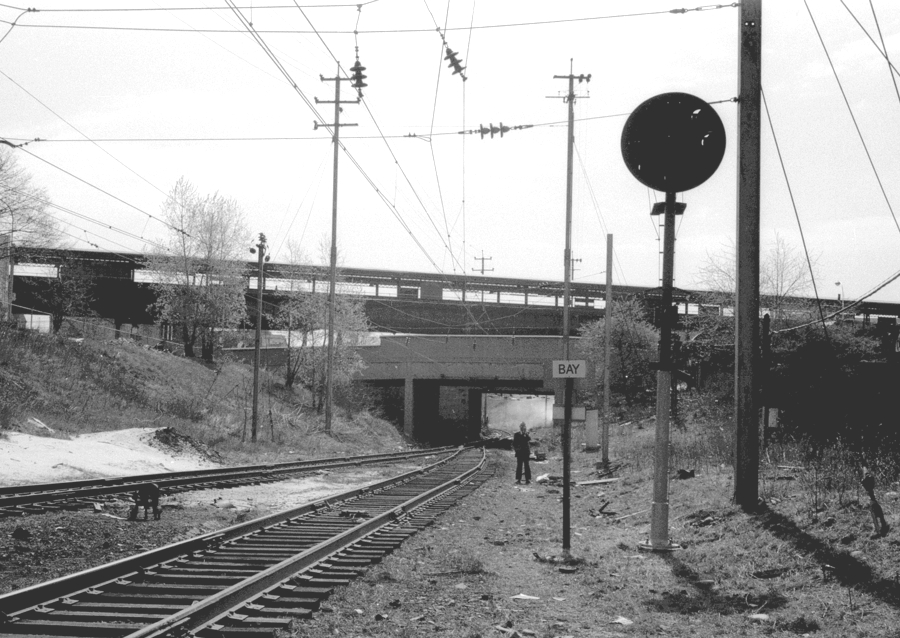

"BAY"   -   SIGNAL "2R" AND SPRING SWITCH NUMBER "141 SS" LOOKING EAST TOWARD NEW UTRECHT
AVENUE AND BOB EMERY.   WE BELIEVE THE LOW HOME SIGNAL AT LEFT WAS PERMANENTLY AT "STOP".

AN   "APPROACH" ON   SIGNAL   "2R"   IS   A   "CLEAR   BLOCK"




"BAY"   -   SIGNAL "2R" LOOKING WEST TOWARD BAY RIDGE


THE   FORMER   SIGNAL   "2L"   AND   BEDFORD   TOWER'S   FOUNDATION   IN   1985
